Month: November 2023

Make Microsoft PowerToys Color Picker Even More Useful!

theChrisKent Branding, SharePoint ,

Add a Hash to your Hex Color Value

I love Microsoft PowerToys. There are a ton of awesome tools included (and it’s FREE!) but my favorite is the Color Picker. Just hit WIN + Shift + C to get a quick dropper to pick a color from anywhere on your screen!

By default, the Color Picker returns the Hex value of the code and copies it to your clipboard. If that’s what you’re looking for, awesome!

I, however, wanted it to include the hash in front so that I could immediately use the value in my List Formats (instead of FFFFFF for white, I want #FFFFFF).

So, I opened the PowerToys settings and navigated to the Color Picker section.

  1. In the Color formats group you can see lots of standard formats and you can use the toggles to add/remove them or even reorder them in the results dialog.
  1. Awesome! However, there still isn’t an option for the HEX value preceeded by the hash symbol. Fortunately, there’s an Add new format button! Click that to open a fancy dialog.

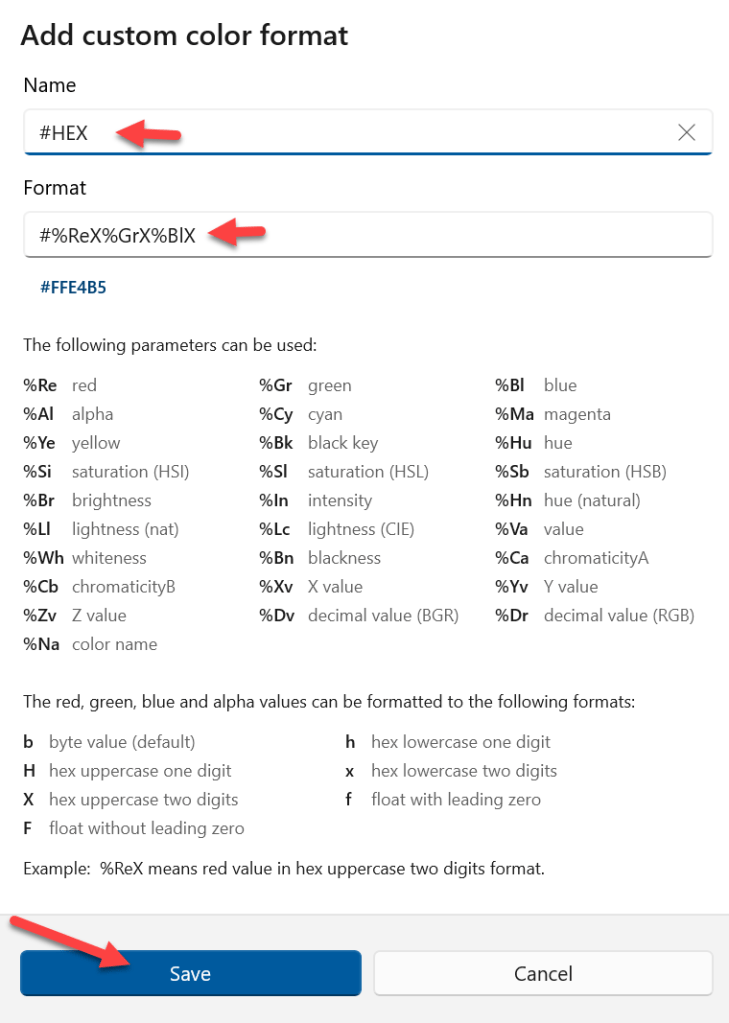

  2. As you can see from all the parameters and options, this thing is super flexible. Our format is “relatively” straight-forward. Name the format #HEX and paste #%ReX%GrX%BlX for the Format value then click Save:

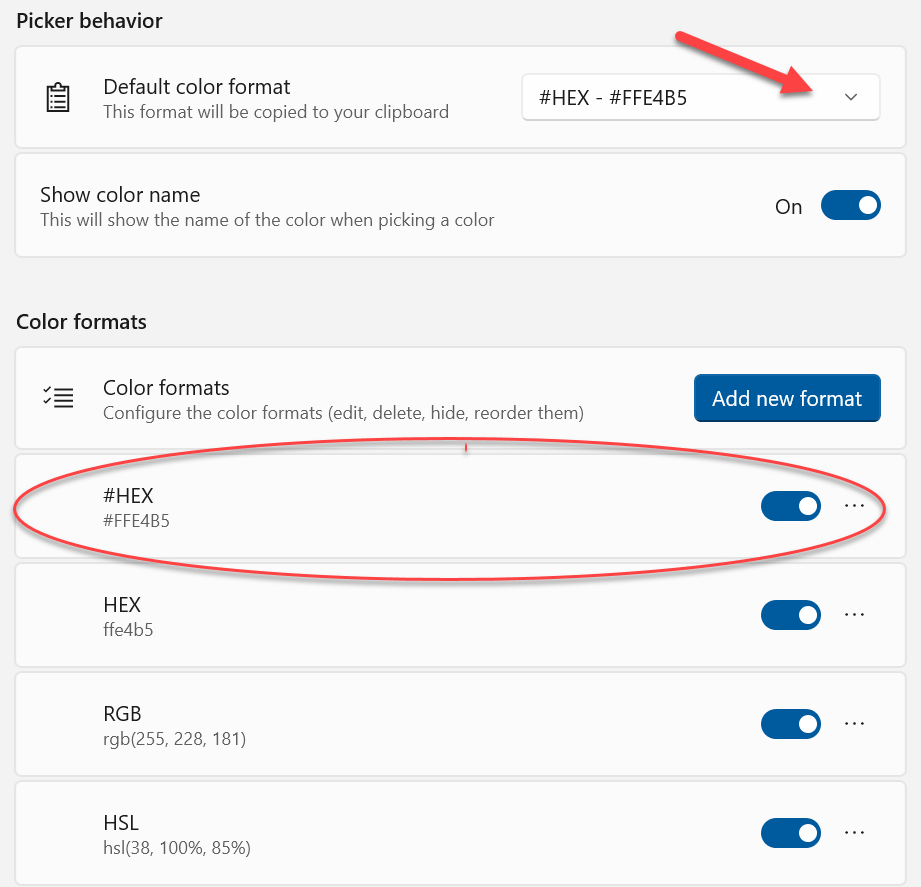

  1. Your new format is now active and at the top of the list! To have it be the default format copied to your clipboard, choose it in the dropdown under Picker behavior:

That’s it! Now you’re color picker is even better. Oh yeah!!!

Enabling Dev Tools in the New Microsoft Teams Client

theChrisKent SPFx ,

Despite Microsoft’s claims, things work differently in the Native client vs Teams on the web and it can be hard to troubleshoot. Having access to the developer tools like you do in the browser can make solving some of those a little easier.

If you are using the Classic Teams client, you can find instructions here for the developer tools: DevTools for Microsoft Teams tabs. Good luck!

Create the Configuration File

Perhaps to make the process feel even more developery or maybe because having a simple toggle in the interface seemed too hard, Microsoft now requires a configuration file to enable the dev menu.

Create a file called configuration.json in notepad, vscode, or whatever text editor you like. Put this inside it:

{
  "core/devMenuEnabled": true
}

Save this file to %localappdata%\Packages\MSTeams_8wekyb3d8bbwe\LocalCache\Microsoft\MSTeams

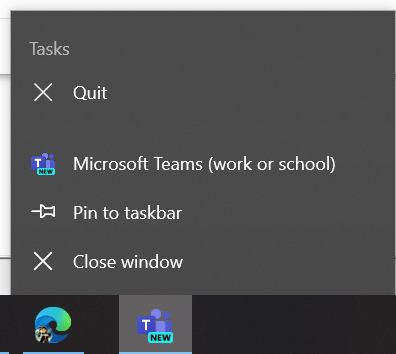

Be sure you quit teams entirely. Remember, Teams is sneaky and just closing the main window won’t do it. Go to the icon in the system tray (might be hidden by default) and right-click on the Teams icon and choose Quit:

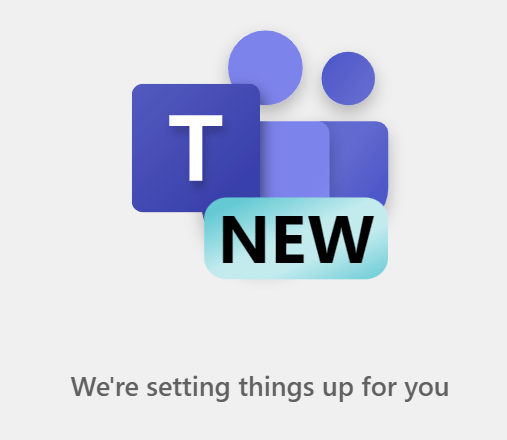

Reopen teams (Make sure it’s the new one with the flashy New written on it):

For some reason, I got this message when I first did this:

I clicked Sign out and when I signed back in everything was fine. Hopefully, you don’t get the above.

Enable Dev Tools

You might think you could right-click on the icon in the task bar and enable them, but we’d both be wrong.

Instead, right-click on the Teams icon in the system tray (like we did earlier) and you should now have an Engineering Tools menu with all sorts of goodies including the Open Dev Tools option we’ve been looking for:

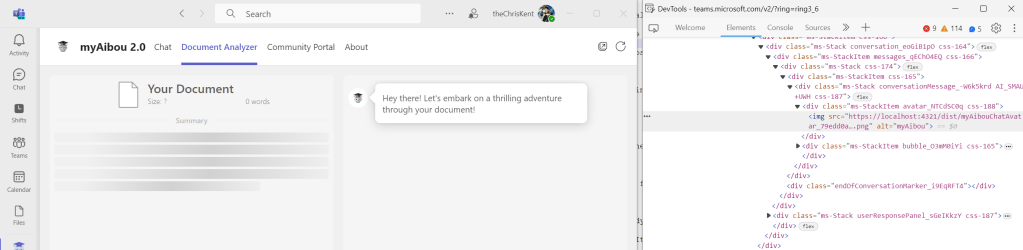

That’s it! You should be able to open the developer tools (in a separate window) and inspect your elements as expected. Here’s me using it to find out what went wrong with my SPFx tab:

Spoiler, it was CSS. For me, it’s always CSS.

Credit

I found this information hidden in a comment on the GA announcement for the New Teams client by Aleksandr Spiridonov. It’s his only comment, but I’m grateful for it!
