Making a Game in PowerApps – PowerPush: Dungeon Explorer 3000!

During my day job I create PowerApps fairly regularly for both clients and internal use. The platform has come a long way in a very short amount of time and has gone from interesting idea to amazing enterprise accelerator. So what did I decide to do with all that enterprise capability? Create a game of course!

PowerPush: Dungeon Explorer 3000!

PowerPush is a Sokoban clone made entirely in PowerApps. It has 6 levels, 4 playable characters, music, sound effects, supports right and left handed players, and has only 4 screens.

Fair warning, there’s a lot of sweet techno loops

PowerPush is open source (in as much as PowerApps can be) and you can import it into your tenant to give it a whirl and take a peek under the hood. There are no data connections at all, so it really is as simple as importing and playing.

Get it here: PowerPush.zip

Why?

To push myself and learn some stuff I wouldn’t necessarily learn by creating another form wrapper app. Believe me, I learned a lot! Number one thing I learned was that PowerApps really isn’t a great platform for making games. However, I also learned several really cool techniques (“wonky hacks” might be a better term for several of them). I’ll talk more about some of these below but I’ll also be following up with some individual tips and tricks in the next few weeks.

How it works

There are a lot of pieces to this app, and the best way to understand it is to just download it and take a look. But here are some details about each of the screens:

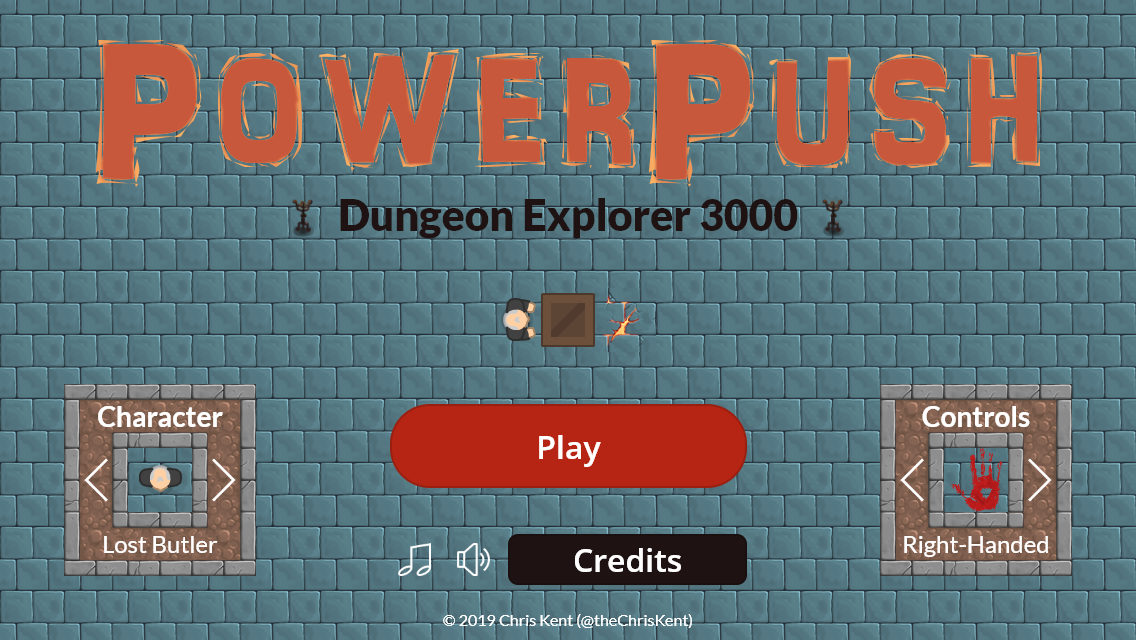

Screen 1: Main Menu

When the app starts, several global variables and collections are initialized. The most important of which is the levels global variable. This is an array of level objects that define the tiles to be used and details about where the crates start and where they should end up:

The levels object is later processed into a set of context variables and collections to manage current state for the active level and provide details about which image to use for each tile and whether those tiles are solid, etc.

The main menu has some animation based on a timer, but otherwise there are simple controls to set global variables used on other screens (like the character).

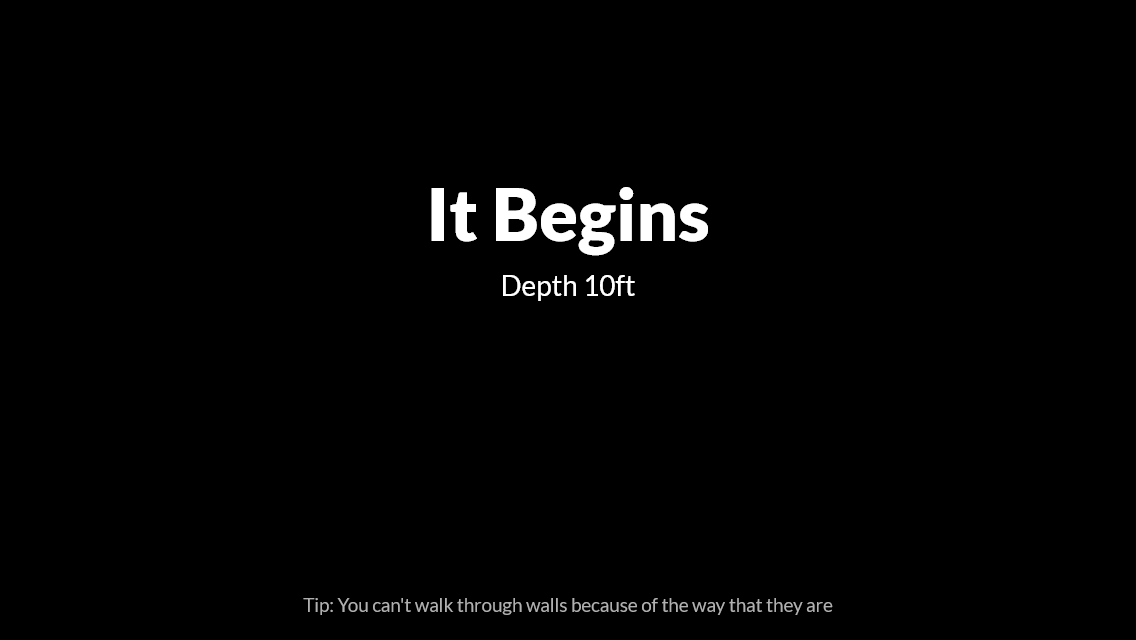

Screen 2: Level Start

The level start screen simply shows the current level details along with a randomly selected “tip”. This screen uses the fade navigation to create a nice transition into the level. You can also click anywhere on the screen to skip the automatic navigation based on a short timer.

One of the key things it does, however, is to process the level object into some key collections:

Set(activeLevel,Last(FirstN(levels,currentLevel)).Value);
Set(tiles,{
    background: ForAll(activeLevel.background,{
        img: LookUp(imgMap,id=Left(Value,2),img),
        solid: Right(Value,1) = "1"
    })
});
ClearCollect(crates, ForAll(activeLevel.start.crates, {x:Value.x, y:Value.y}));
ClearCollect(torches, ForAll(activeLevel.start.crates, { on: false}));
UpdateContext({tip:First(Shuffle(tips)).Value})

More details will later be pulled out of the activeLevel object to set up initial state for the player, but the info above determines how many crates are visible and where they are along with key information about the tiles. By using an image map collection we can use the strings setup in the level (first 2 characters are the tile image and the last indicates if the tile should be “solid”).

This step greatly simplifies level design by making it a simple array of strings so that you can almost visualize the level while you design it. By processing it here, we get easily usable values in a collection that tiles can reference details from by index.

This is how we can have one screen for the main game with any number of levels! This lets us simply bind to a data model and write logic (movement) to update that model. This is the area that PowerApps really shines.

Additionally, we could easily provide multiple image maps to create “themes” for levels to allow the same logic to apply a completely different tile set. The tile objects could also be extended to provide an additional layer of tiles for foreground elements if we wanted using nearly the same logic.

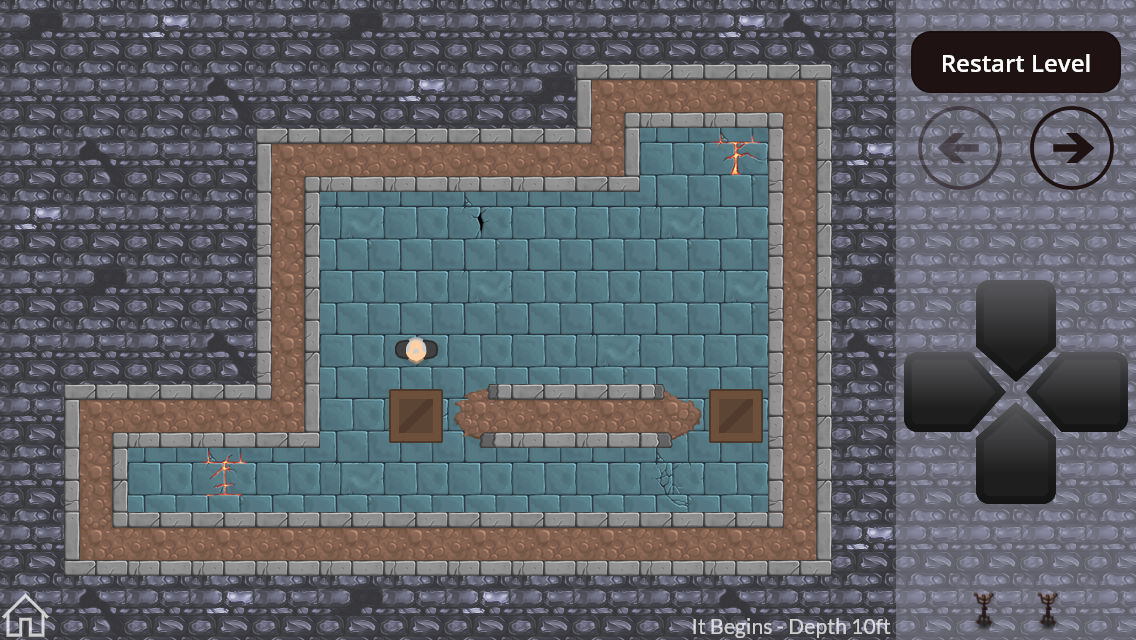

Screen 3: Main Game

This is where all the levels are shown. The tile system is based on 140 images laid out in 10 rows of 14 columns. Each of these tile image controls hijack their own BorderThickness property to store their “index” value. This works because the BorderStyle is set to None (so that value isn’t used).

This “index” value is used to position each of the individual tiles (the number of tiles, size, rows, columns, etc. can all be changed through some simple global variables). The “index” is also used to pull what the image should be by referencing the tiles object’s background array (shown above).

While not easy, you can reference an item within a collection by index by using this non-obvious formula:

Last(FirstN(tiles.background,tile043.BorderThickness)).img

The actual movement logic is handled in a single spot. There aren’t really global functions in PowerApps, but I’ve got something pretty close in that I’ve added a timer with a Duration value of 0. Then I set the AutoStart to a context variable. In the OnTimerEnd action I update any variables as needed and finally set that same AutoStart context variable to false.

So now to call that “global function” I simply need to call an UpdateContext function. In that call I update any “parameter” variables the global function will reference and set the AutoStart variable to true. For instance, here is the OnSelect for the Left button of the virtual D-Pad:

UpdateContext({requestedMove:{x:-1,y:0,rot:ImageRotation.Rotate180},evaluateMove:true})

Just to show you the power of the “global function” approach, here is the OnSelect for the Down button of the virtual D-Pad:

UpdateContext({requestedMove:{x:0,y:1,rot:ImageRotation.Rotate90},evaluateMove:true})

Both of these calls are nearly identical with the only exception being the “parameter” variable requestedMove.

The key part, however, is that evaluateMove:true. This will cause the timer to start and because it has a Duration of 0 it immediately performs it’s OnTimerEnd actio. This was really important because the move evaluation logic is pretty complicated and I really didn’t want to cut and paste it with some minor tweaks between 4 different buttons. That would be pretty hard to maintain.

The actual move evaluation uses a series of If statements and looks at the tiles collection to determine the current positioning of objects to determine if the requested position of the player is open and what should happen (push a crate, play a grunt since he hit a wall, etc.). It’s pretty convoluted, but you can see that some pretty complex logic can be performed to update our positioning elements (which specific controls like the player or the crates are bound too). Because of the power of PowerApps, all of the controls redraw themselves automatically just by our editing the model!

"Handle movement";
"If no wall in this direction";
If(!Last(FirstN(tiles.background,(playerY+requestedMove.y)*14+playerX+requestedMove.x+1)).solid,
    "If no crate in this direction";
    If(CountIf(crates,x=playerX+requestedMove.x And y=playerY+requestedMove.y) = 0,
	    "No crate, just move the player";
        UpdateContext({playerX:playerX+requestedMove.x, playerY:playerY+requestedMove.y, playerRot:requestedMove.rot, playerPushing:false,playSndWalk:true});
        Reset(audWalk),
		"There is a crate, see if it is up against a wall";
		If(!Last(FirstN(tiles.background,(playerY+requestedMove.y*2)*14+playerX+(requestedMove.x*2)+1)).solid,
			"Not against a wall, check for another crate";
			If(CountIf(crates,x=playerX+(requestedMove.x*2) And y=playerY+(requestedMove.y*2)) = 0,
				"Push that crate!";
				UpdateIf(crates, x=playerX+requestedMove.x And y=playerY+requestedMove.y, {x:playerX+(requestedMove.x*2),y:playerY+(requestedMove.y*2)});
				UpdateContext({playerX:playerX+requestedMove.x, playerY:playerY+requestedMove.y, playerRot:requestedMove.rot, playerPushing:true,playSndWalk:true,playSndPush:true});
                Reset(audWalk);
                Reset(audPush),
				"Can't move the crate or player (crate against a crate), but update player look";
				UpdateContext({playerRot:requestedMove.rot, playerPushing:true, playSndGrunt:true});
                Reset(audGrunt)
			),
			"Can't move the crate or player (crate against a wall), but update player look";
			UpdateContext({playerRot:requestedMove.rot, playerPushing:true, playSndGrunt:true});
            Reset(audGrunt)
		)
    ),
	"Can't move the player (wall), but update player look";
	UpdateContext({playerRot:requestedMove.rot, playerPushing:false});
    If(Rand()<.5,
        UpdateContext({playSndHuh1:true});
        Reset(audHuh1),
        UpdateContext({playSndHuh2:true});
        Reset(audHuh2)
    )
);

"Check crate positions";
ClearCollect(prevTorches, torches);
ClearCollect(torches, ForAll(crates, {on:CountIf(activeLevel.start.targets, x=Value.x And y=Value.y)>0}));
If(CountRows(Filter(torches,on=true))  CountRows(Filter(prevTorches,on=true)),
    UpdateContext({playSndIgnite:true});
    Reset(audIgnite)
);

"Check for Win";
If(CountRows(Filter(torches,on=true)) = CountRows(activeLevel.start.targets),
    UpdateContext({finalDescent:true});
    Reset(audMusicWin)
);
UpdateContext({evaluateMove:false})

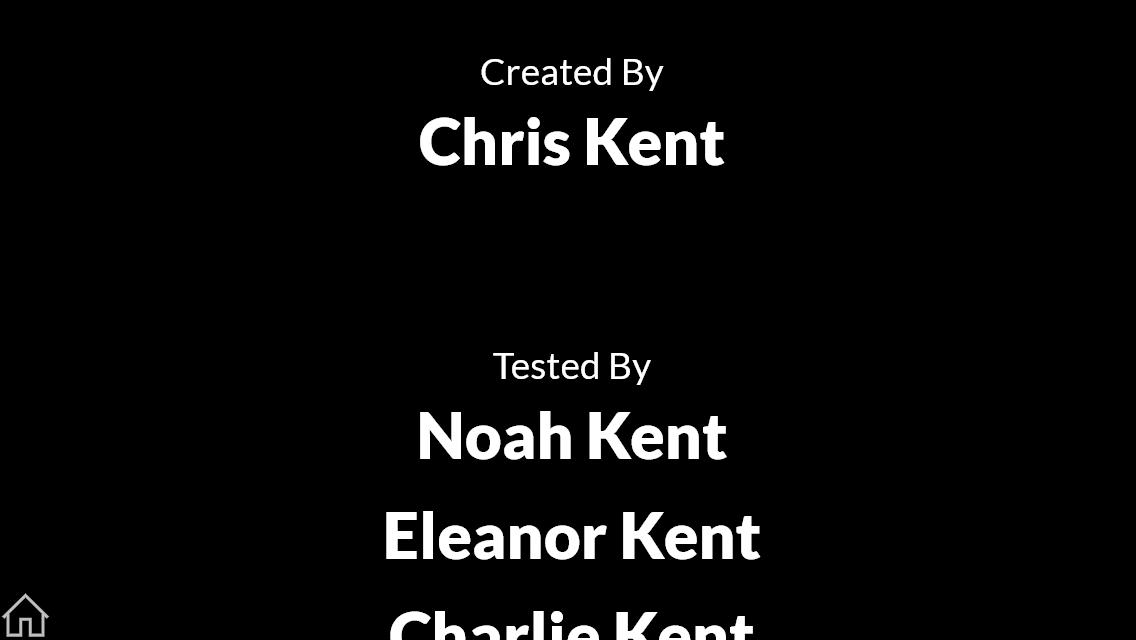

Screen 4: Credits

This is a really simple screen that has a gallery bound to a custom credits collection. Then the Y value of the gallery is set based on a timer value to provide the scrolling animation. The timer is on a loop, so the scrolling is too.

This screen really exists to thank the tile artists (used with permission, but still greatly appreciated) and to make my kids happy (they’re the testers listed above).

Lessons Learned

I’m going to post a few different techniques I used as separate articles over the next few weeks, but there are several pain points I identified that I’d love to see solved in the future. Here’s a few:

Need for a this operator

You refer to a control by it’s name in your formulas. This works great. Even better, if you copy one or more controls they’ll get renamed and all the formulas updated. This is super powerful. But… if you suddenly need to update that formula on multiple controls (say 140 tiles), you can’t just select them all and update their formula because all of those formulas are now unique because they refer to specific controls. Simply introducing a this keyword that would refer to the current control in it’s own functions would be awesome.

Related Idea Entry – Go Vote!

Additional Idea Entry – Go Vote!

Audio should pause in the editor

Currently, if you loop and play your audio file it will continue to play even in the editor. This is weird behavior since, for instance, the timer stops running in the editor. This means if you do something like add really annoying techno music (see video above), you’ll never escape it.

Related Idea Entry – Go Vote!

True Image Rotation is needed

Right now you can flip an image control horizontally or vertically and you can rotate in 90 degree increments. It would be far more powerful if you could specify an exact degree of rotation. This would make animations far better.

Related Idea Entry – Go Vote!

Custom Object Props Please

To simplify things, I shoved an index variable for the tiles, crates, torches, etc. into their border width property. This works because I wasn’t using this property (BorderStyle: None). This made creating multiple controls that knew what variables to pull from far simpler. However, it would be even better if we could just associate custom properties of a given type directly on controls instead of hijacking an unused property (since this could have unintended consequences).

Related Idea Entry – Go Vote!

Reference Media by Name (text)

When you assign an image to an image control you do so by the Media variable. This is true for other controls as well. This is fine, but it can make dynamic assignments difficult since the control will need to be able to reference (know about) the actual media variables directly. I solved this using an image map collection so that I could build strings and then find the referenced image that way. This works pretty well, but it would be even easier if there were just a Media(“MediaName”) function.

Related Idea Entry – Go Vote!

Support for Key Down Events

PowerPush was designed for touch controls on a phone using a simulated d-pad. This works, but is clunky for the web. It would be far nicer to move with the arrow keys. Unfortunately, there isn’t a key down event to do this.

Related Idea Entry – Go Vote!

Update

I demoed the game on the SharePoint Patterns and Practices General Development call on 1/24/2019. Check it out here:

Applying Column Formats to Multi-line Text Fields

Multi-line text columns don’t provide the standard “Format this column” option under Column settings in the modern list view column menu. They used to, but now they don’t. Fortunately, there is still a way to apply column formatting to these fields!

There are 2 ways in within the interface to apply column formatting for a column (you can also do it programatically). The easiest and most common way is to use the “Format this column” option mentioned above, but it’s not the only way! The advanced settings for a column provide an additional spot where you can paste your formats. Aw yeah!

The Format

I’m using the text-wrap-format sample from PnP created by Aaron Miao. This is a great format for when you really want to see your full text (instead of the cut-off fade provided by default). I’ve modified the sample slightly to apply the primary theme color for the text to make it even more obvious. Here’s the full format:

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json",
  "elmType": "div",
  "txtContent": "@currentField",
  "style": {
    "white-space": "normal",
    "padding": "11px 0"
  },
  "attributes": {
    "class": "ms-fontColor-themePrimary"
  }
}

Applying the Format

Here’s what our list view looks like before applying column formatting to the multi-line text field, “Synergy”:

To apply column formatting to a multi-line text column:

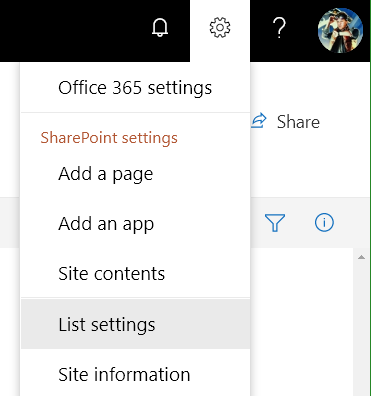

  • Navigate to the List Settings (Site Actions > List Settings):
  • Choose the multi-line column from the column settings
  • Scroll to the bottom of the multi-line column settings and paste your format in the Column Formatting section:
This same option is also available for site columns!
  • Click OK, then return to your list view and refresh to see the format applied:
The blue is the theme color and was added to the sample just to make it more obvious a format was applied. The key thing to notice is that the full text is now shown.
  • Weep at the beauty of thy column!

NOTE – List Formatting encodes values prior to rendering which makes the use of enhanced (rich text) multi-line fields basically unusable in your formats. These values come back as HTML and that HTML will be encoded and then displayed inline with your values. It is NOT recommended to use Rich text fields in your formats.

Update

See this demoed on the PnP Call:

Love List Formatting?

Join the Bi-weekly (every other Thursday) SharePoint Patterns and Practices special interest group for general development call where I will be presenting a new List Formatting Quick Tip on each call!

Also, come get the full picture in my sessions about List Formatting at SPTechCon in Austin in February, the North American Collaboration Summit in Branson in March, the SharePoint Conference in Las Vegas in May, or the European Collaboration Summit in Germany in May:

New List Formatting Magic String @currentWeb!

There are several special string values that can be used within both view and column formatting. The most common is, of course, @currentField which will return the value of the field you are formatting in column formatting or the title field in view formatting.

These “magic strings” are placeholders for contextual information that are replaced when the format is applied. For instance, @now will be replaced with the exact date/time the format is rendered. This is really helpful to provide dynamic formats.

While poking around today, I found a new one! @currentWeb can now be used to return the absolute url for the site! This is the equivalent of the page context’s webAbsoluteUrl.

Why is this exciting? Previously, you had 2 options when trying to link to something on your site or pulling in an image and they each had major drawbacks:

  • Hardcode the Base URL (https://tenant.sharepoint.com/yourresource)
    • Pro: You’ll always get the image/link you wanted
    • Con: Your format can’t be reused on other sites without manually fixing these links
  • Use a Relative URL (../../yourresource)
    • Pro: Your format is reusable across sites
    • Con: Your URLs are dependent on your relative location. So if someone uses your format within a web part on a different level of your site (folder), your URLs could break

Now, by using @currentWeb, you can have all the good with none of the bad!

For instance, just recently I demoed a quick tip on the PnP call that showed you how to use a relative URL to reference a local image in order to keep the format generic enough to be used with PnP Remote Provisioning. Now my dots can just be replaced with @currentWeb!

Here’s the original relative URL in the contenttype-format view formatting sample:

  "elmType": "img",
  "attributes": {
    "src": "='../../Shared Documents/Fruit/' + if([$ContentType]=='Apple',[$AppleType],[$OrangeType]) + '.png'"
  },

Again, that works fine as long as the format is being applied at the same relative distance from the image files. But now, we can just write:

  "elmType": "img",
  "attributes": {
    "src": "=@currentWeb + '/Shared Documents/Fruit/' + if([$ContentType]=='Apple',[$AppleType],[$OrangeType]) + '.png'"
  },

Now, the resulting URL will always resolve to my images regardless of where in the site my format is being rendered!

Here’s an even simpler example for when I want to link to a document in my documents library:

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json",
  "elmType": "a",
  "attributes": {
    "href": "=@currentWeb + '/Shared Documents/MyDoc.pdf"
  }
}

What a great addition! Now List Formatting is even more powerful!

Note: @currentWeb is only supported in SharePoint Online and is not available in SharePoint 2019

Update!

See this demoed on the PnP Call:

Love List Formatting?

Join the Bi-weekly (every other Thursday) SharePoint Patterns and Practices special interest group for general development call where I will be presenting a new List Formatting Quick Tip on each call!

Also, come get the full picture in my sessions about List Formatting at SPTechCon in Austin in February, the North American Collaboration Summit in Branson in March, the SharePoint Conference in Las Vegas in May, or the European Collaboration Summit in Germany in May:
